Water Tower Fire Truck
>
|
| Place of Origin | CHINA |
| Brand Name | HOWO |
| Certification | CCC(F) |
| Model Number | WHG5301JXFJP18 |

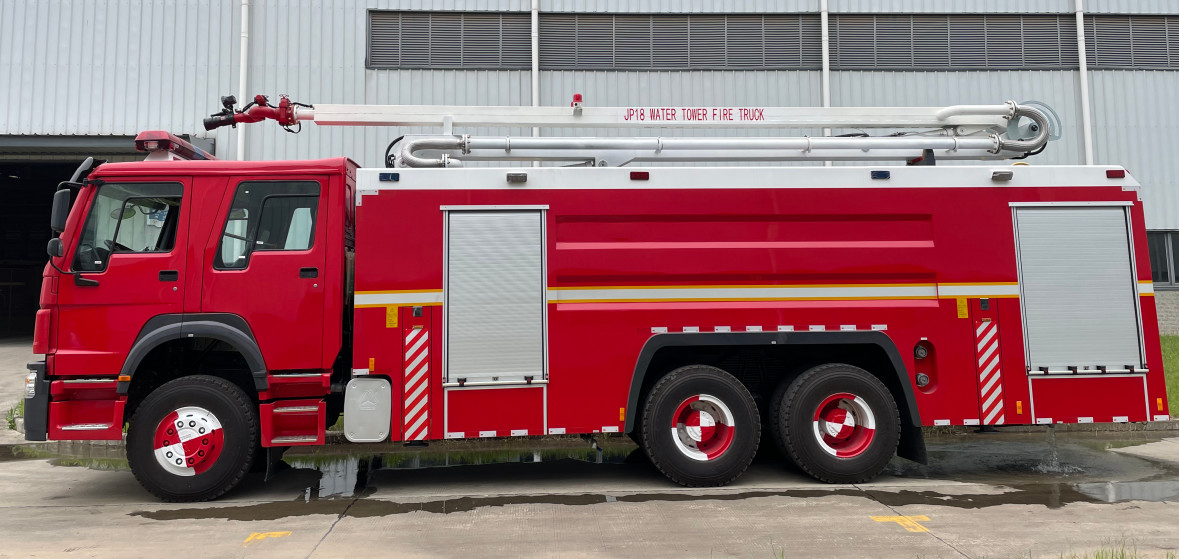

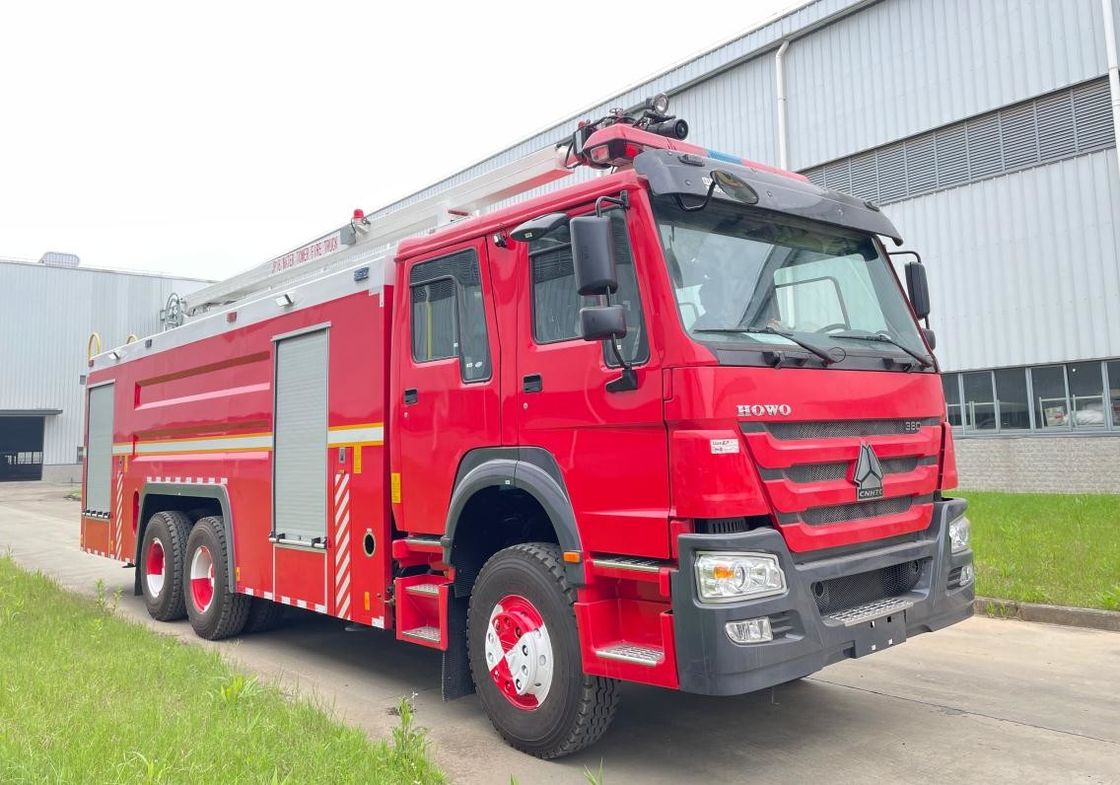

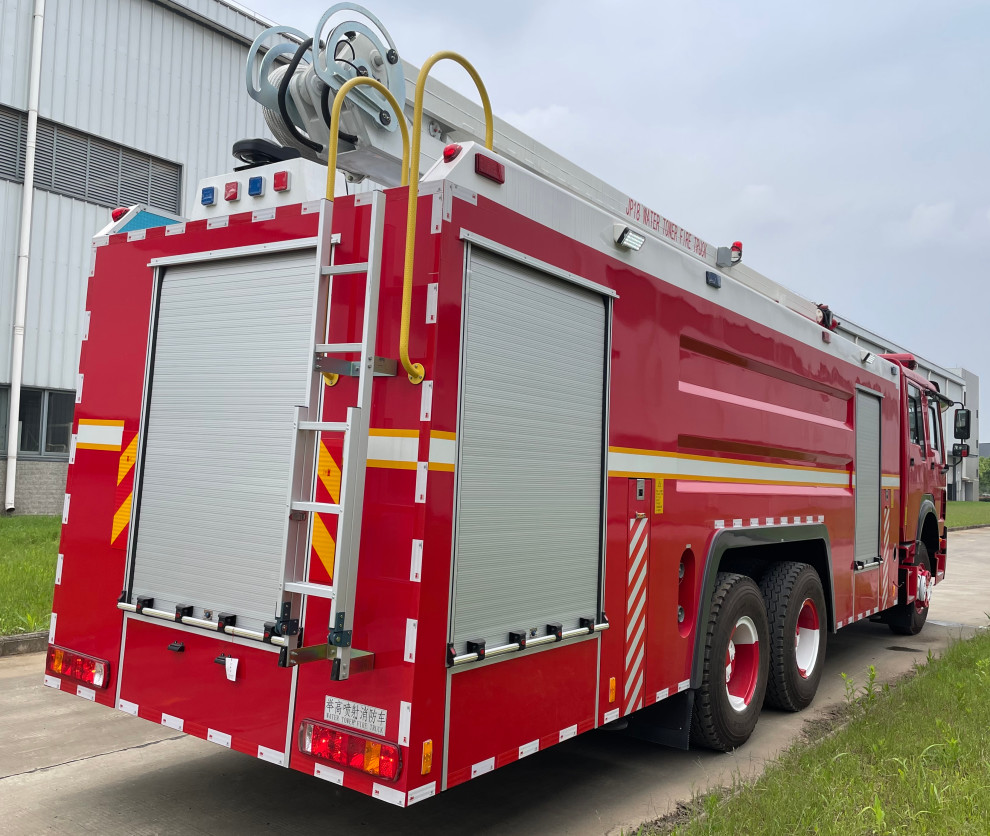

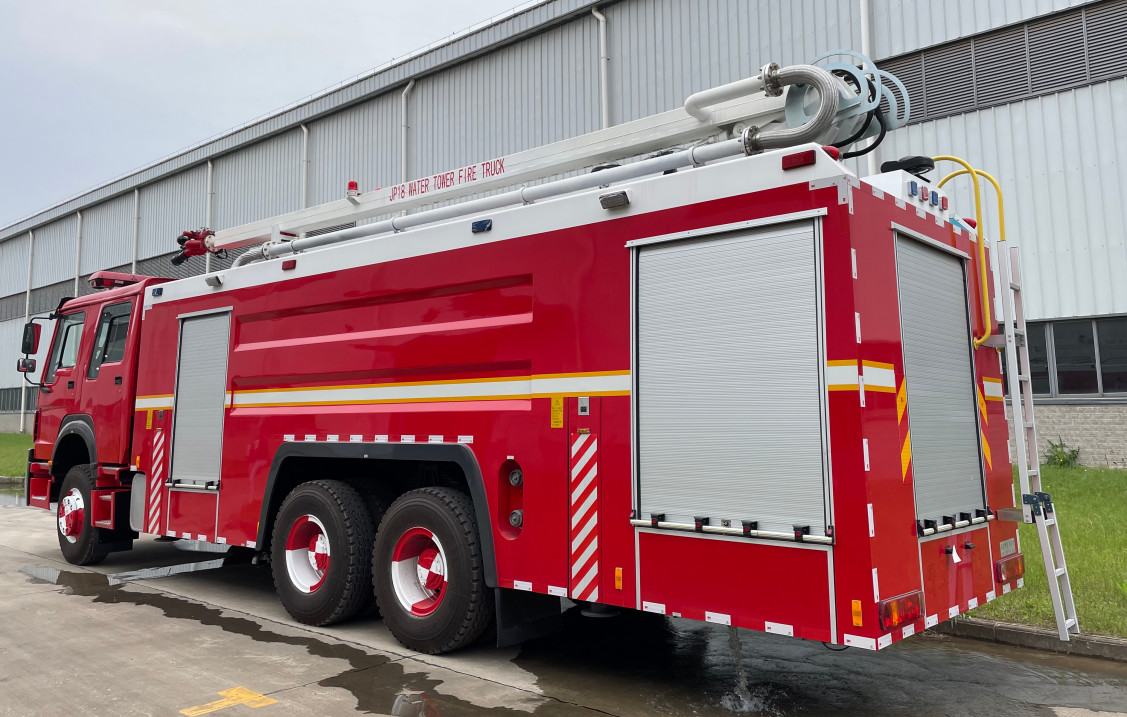

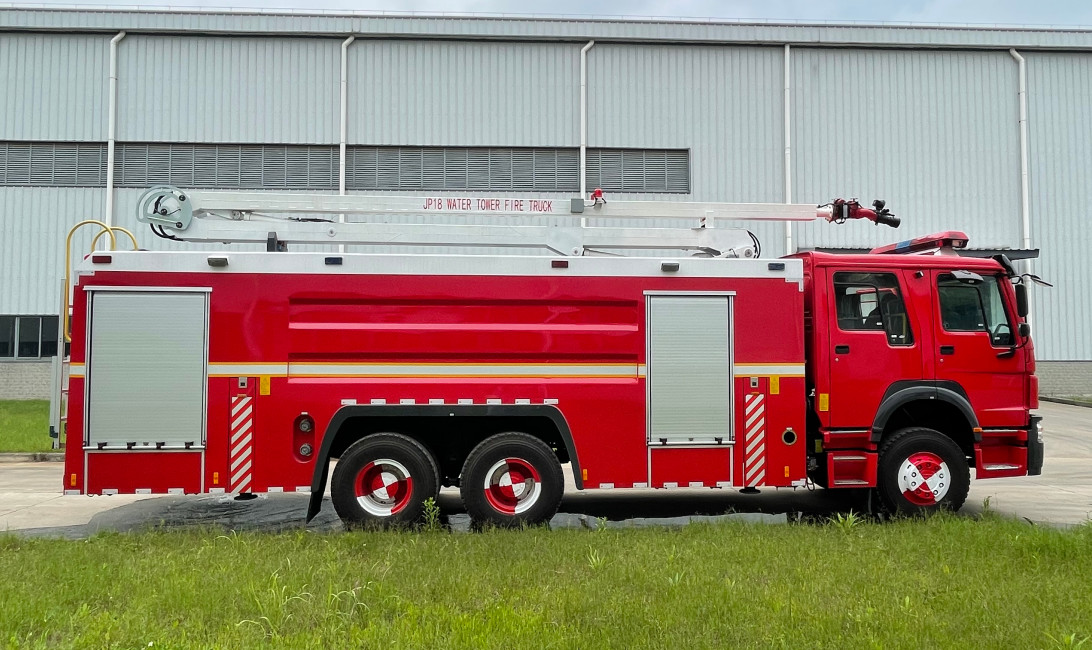

SINOTRUK 336KW 6*4 Water Tower Fire Truck with 10t water and 2t foam
I, Main Product Specifications
| Product Name | HOWO water tower fire truck | |||
| Model | WHG5301JXFJP18 | |||
| Chassis parameters | Chassis Model | ZZ5357TXFV464MF5 | ||
| Overall dimensions (mm) | 12000*2500*3800 | |||
| Gross weight (kg) | 33500 | |||
| Passengers in cab | 2+4 | |||
| Wheelbase | 4600+1400 | |||
| Engine model | MC11.46-61 | |||
| Engine power(kw) | 336 | |||
| Tire | 12.00R20 18PR | |||
| Emission standard | Euro 6 | |||
| Displacement (ml) | 9726 | |||
| Max speed(km/h) | 80 | |||
| Fire performance | Tank capacity | Water (kg) | 10000 | |
| Foam(kg) | 2000 | |||
| Fire pump | Model | PSP1500 | CB20.10/30.60-RS | |
| Rated flow (L/S) | 90L/S;1.0MPa | 60L/S;1.0MPa 30L/S;2.0MPa | ||
| Fire monitor | Model | Akron 3578 | Wister PLKD48 | |
| Rated flow (L/S) | 80L/S;0.9MPa | 48L/S | ||
| Range (m) | Water≥75m Foam≥70m | Water≥50m Foam≥45m | ||
| Maximum working height(m) | 18 | |||
| Maximum working range(m) | 7.5 | |||
| Foam proportioner | Model | PH64 | ||
| Mixing ratio | 3％-6％ | |||
II,Main characteristics
1,Highly automatic,High Working height.
2,Suitable for all kinds of fire disasters in high-rise in city
3,Widely used in the fire fighting of fire safety departments, ports,construction sites, city and son on.
III,Basic Description
This vehicle is composed of a chassis, a 18m high spray arm, a fire pump, a fire monitor and equipment boxes. The18M water tower fire truck has strong maneuverability and traffic-ability, all the main electronic control components are imported, which have the characteristics of high reliability, long working hours, simple maintenance, good effect and so on.
The vehicle is easy to operate, the support leg can be leveled by one-key operate, the security is high, the supporting legs and the arm frame are interlocked with each other, if the support is not in right place, the arm frame cannot lift, big arm and small arm are interlocked with each other, to avoid too large angle. The18M water tower fire truck lifting height is up to 18 meters, in the process of fire fighting, the firemen can carry out long distance fire fighting, to effectively ensure the safety of the firemen while ensuring the effect of the fire fighting.
This vehicle is widely used in the fire fighting of fire safety departments, ports,construction sites, city and son on.
IV, International Fire Exhibition
V,Application Cases
