Forest Fire Truck
>
|
| Place of Origin | CHINA |
| Brand Name | ISUZU |
| Certification | CCC(F) |
| Model Number | WHG5140XFSG30 |

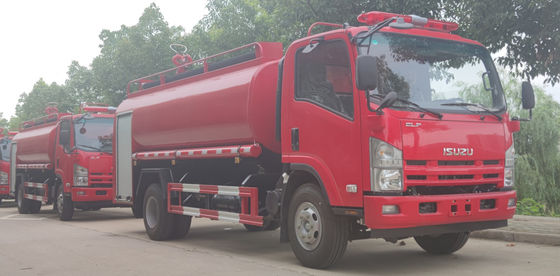

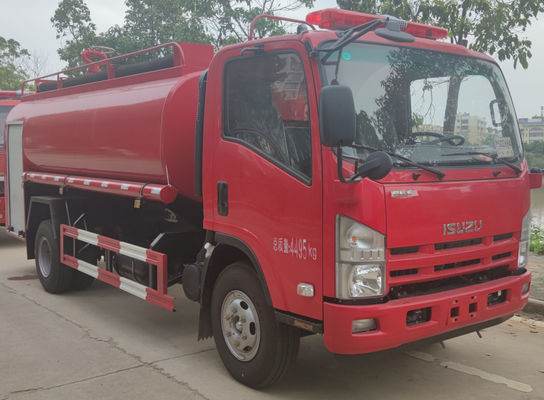

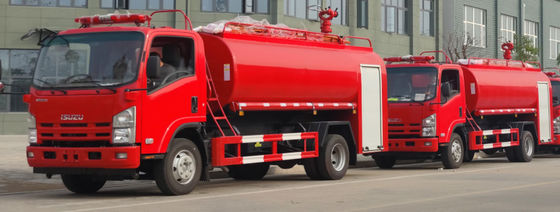

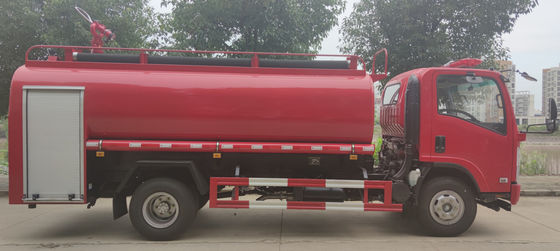

ISUZU 190HP 4*2 8T WATER TANK FIRE TRUCK for forest use
I, Main Product Specifications
| Product Name | ISUZU 8T WATER BOWSER | ||
| Model | WHG5140XFSG30 | ||
| Chassis parameters | Chassis Model | QL11019KARY | |
| Overall dimensions (mm) | 6900×2250×3150mm | ||
| Gross weight (kg) | 13500 | ||
| Passengers in cab | 2 | ||
| Wheelbase(mm) | 3815 | ||
| Engine model | 4HK1-TCG40 | ||
| Engine power(kw) | 139 | ||
| Tire | 235/75R17.5 | ||
| Emission standard | EURO 4 | ||
| Displacement (ml) | 5193 | ||
| Max speed(km/h) | 90 | ||
| Fire performance | Tank capacity | Water (kg) | 80000 |
| Fire pump | Model | CB10/40 | |
| Rated flow (L/S) | 40L/s@1.0MPa | ||
| Fire monitor | Model | PS40 | |
| Rated flow (L/S) | 40 | ||
| Range (m) | ≥50 | ||
II,Main characteristics
1,High Mobility.
2,Complete functions ,adequate capacity.
3,Suitable for all kinds of roads,complex terrain;also applied for landscape imigation,Road spraying and so on.
4,Can be used as Major fire truck for urban area.
III,Basic Description
This vehicle has the characteristics of large specific power, large person capacity, strong comprehensive performance, centralized and simple operation and so on. It is especially suitable for fighting oil and other oil fire, it can also provide water and foam mixture to the fire sites, and it is a necessary equipment for petroleum and chemical industry, oil transportation terminal, airport and city professional fire fighting.
IV, International Fire Exhibitions
V,Application Cases
