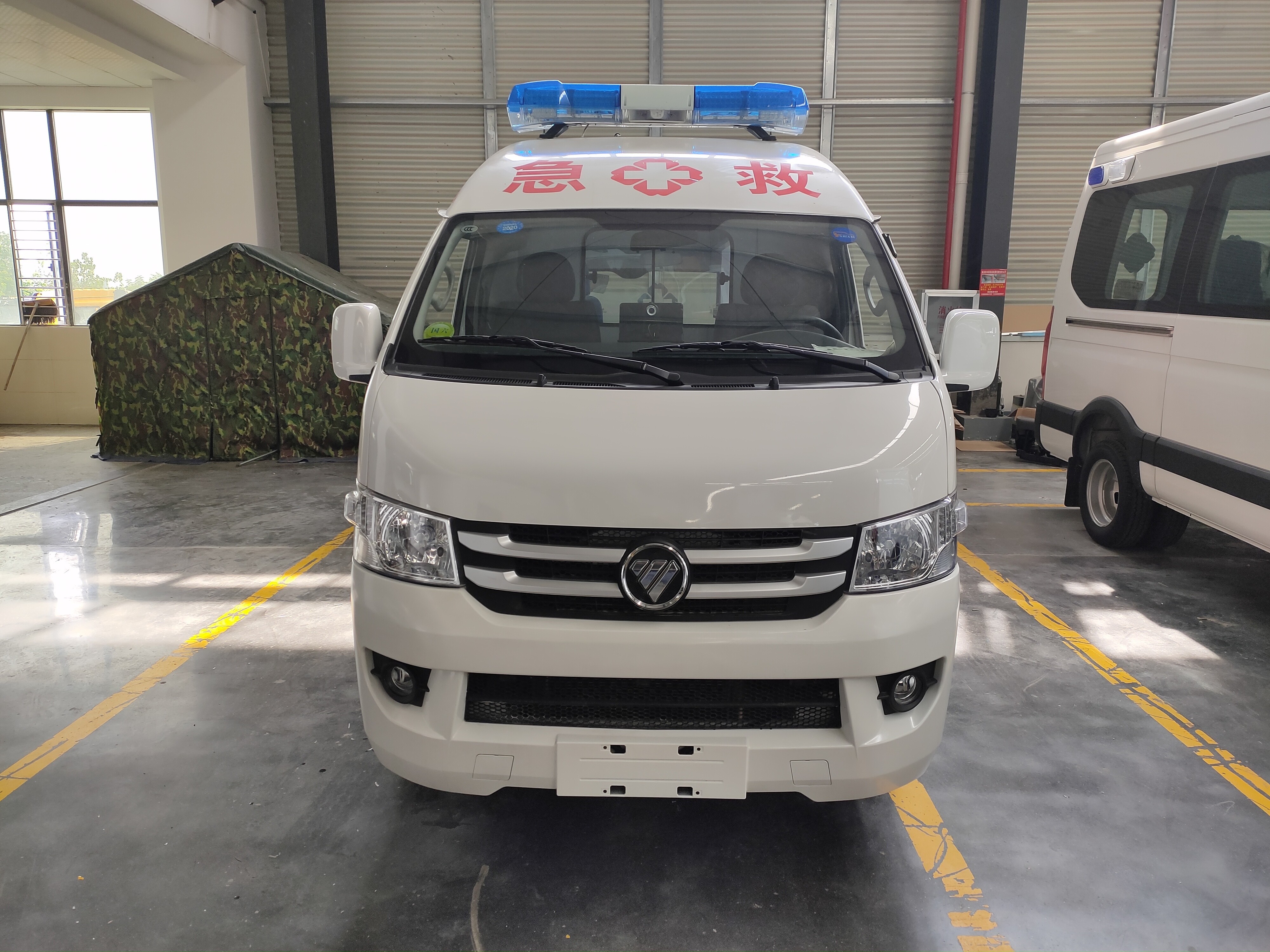

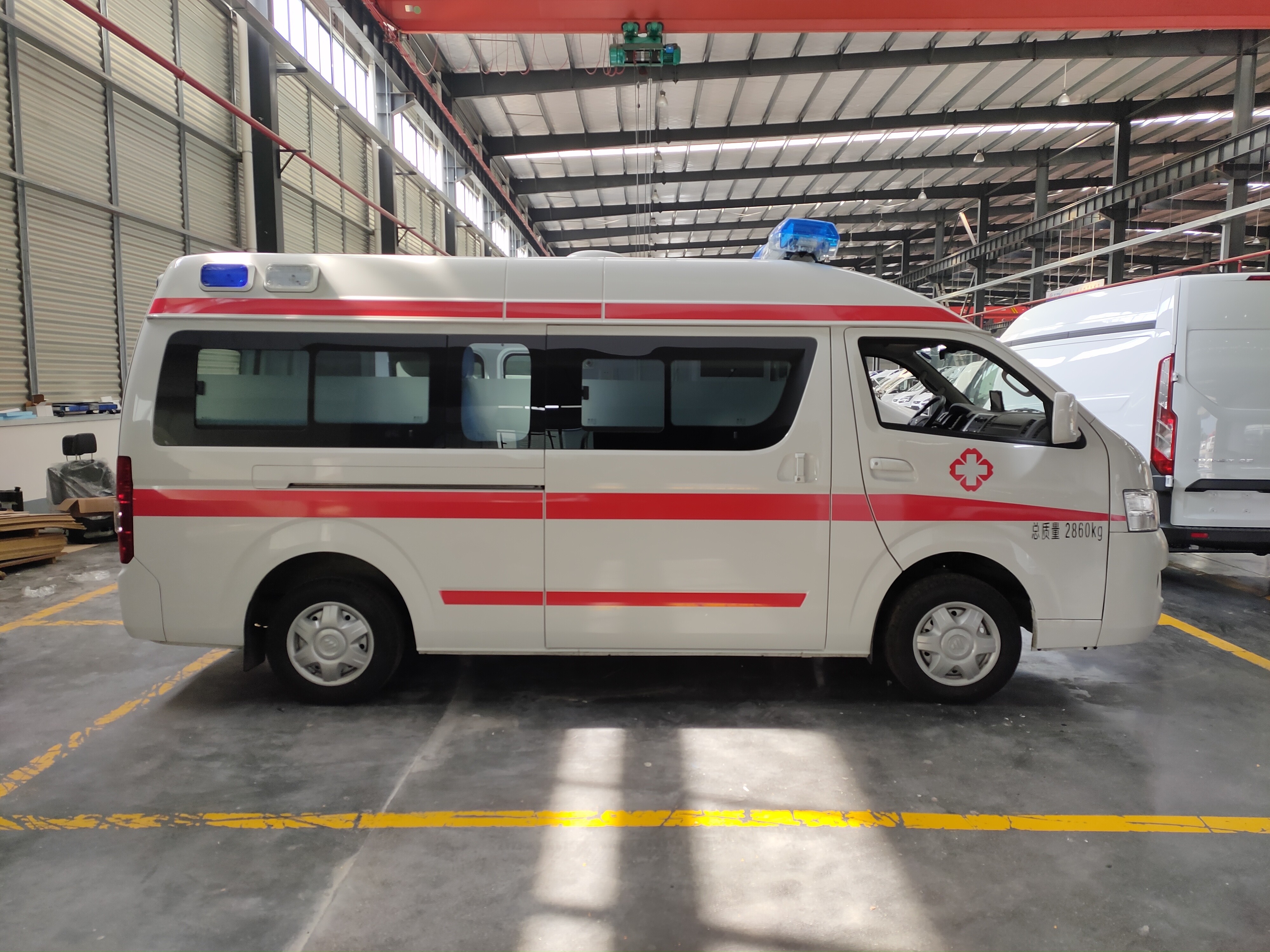

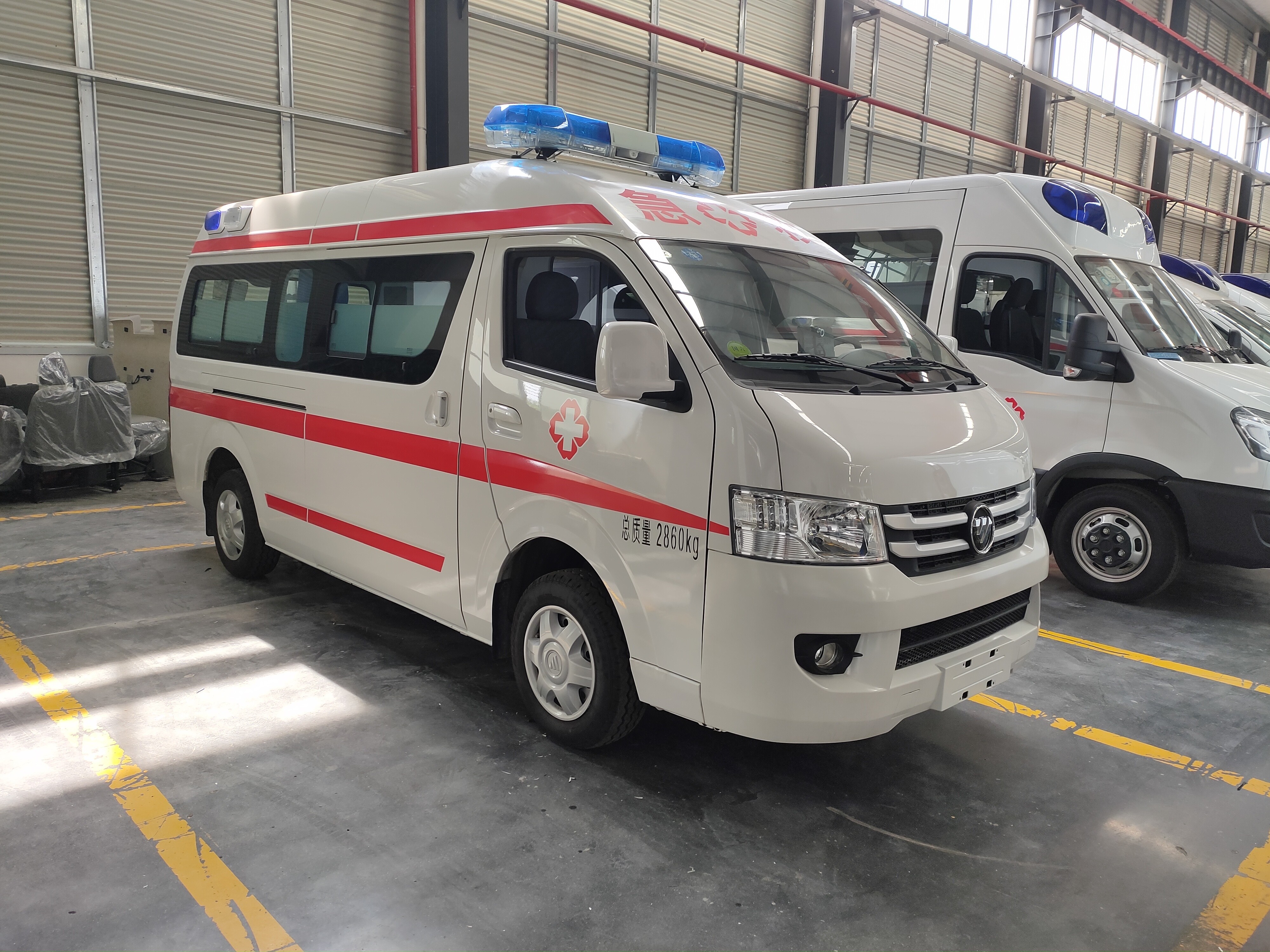

Foton G7 Transfer Ambulances
Ⅰ.The Product Specifications
Product Name | Foton G7 Transfer Ambulances | |
Model | WHG5032XJH | |
Chassis parameters | Engine Model | 4K22D4M |
Engine Power(kw) | 118 | |
Wheelbase(mm) | 3050 | |
Overall Dimension(mm) | 5320×1695×2460 | |
Carriage Dimension(mm) | 3300×1540×1580 | |
Fuel Type | Gasoline | |
Fuel Consumption | 2.378L | |
Emission Standard | EuroVI | |
Gross Weight(kg) | 2860 | |
Max Speed(km/h) | 150 | |
Performance | Automatic Loading Stretcher | |
Sliding Rail Infusion Gripper | ||
Oxygen | ||
Oxygen inhaler | ||
Ventilator Interface | ||
Regulators |
II. Basic Description
The Foton G7 guardian ambulance is modified from the scenic G7 long-axle model launched by Foton Motor. Matching 2.4L gasoline 4K22 power, perfect match with the whole vehicle, surging power, efficient fuel saving, equipped with a full range of active + passive safety protection system, speed up to 150km/h; Using Bosch version 9.1 ABS+EBD technology, the guided front section design, high-strength steel plate, high mild anti-collision steel beam design fully ensure the safety of the vehicle; The overall body center of gravity is low and more stable, effectively ensuring the safety of the driver; Medical cabin space design is reasonable; The whole vehicle adopts the leading medical vehicle modification technology in China, which is suitable for all kinds of hospitals and emergency centers, especially suitable for patient transfer and urban emergency treatment.

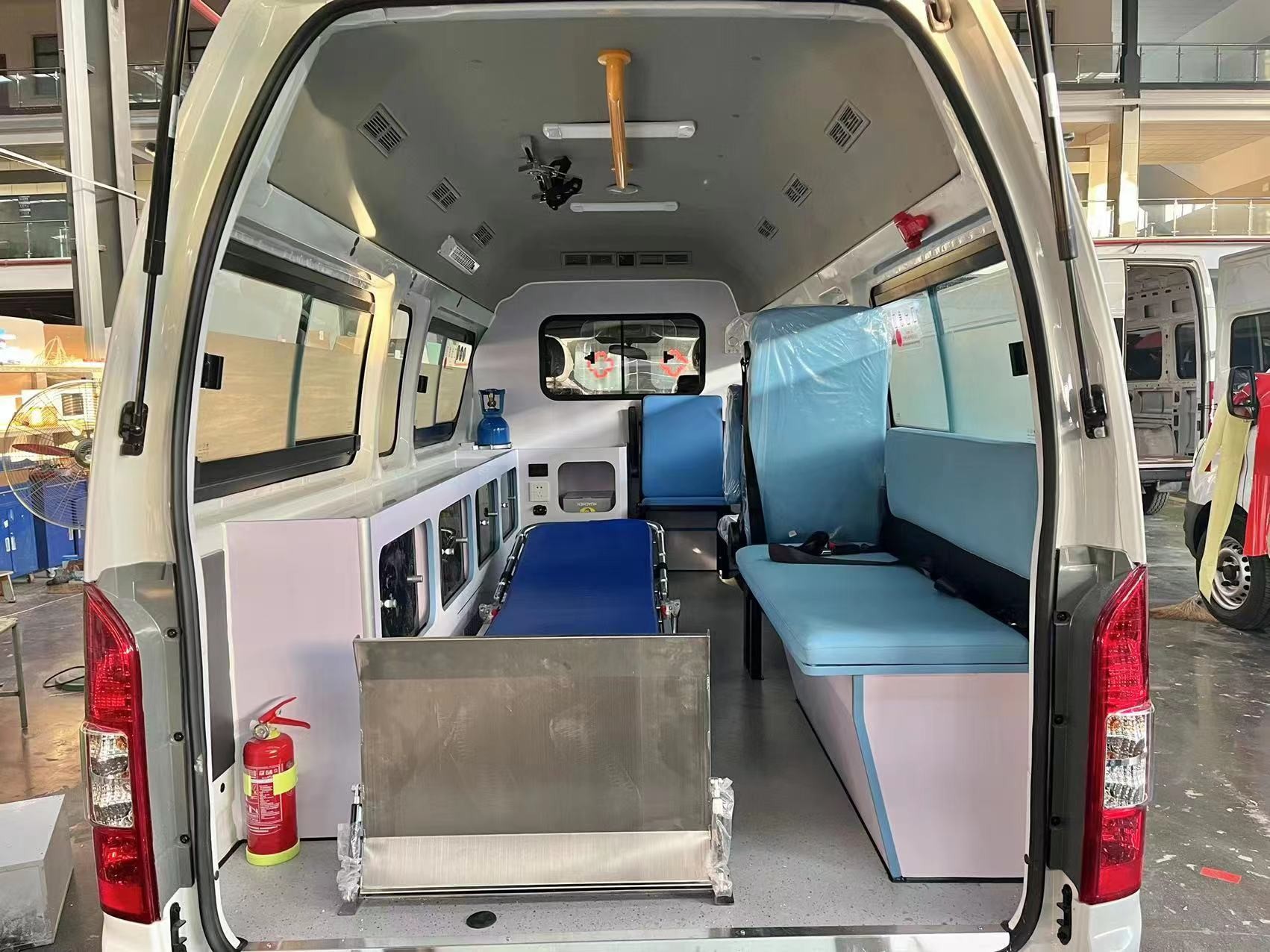

III.Medical cabin ambulance facilities
Ambulance system:
1. Automatic loading stretcher: all aluminum alloy profile skeleton, comfortable soft stretcher mattress, light weight, high strength, bearing weight of 181kg, convenient and smooth and easy to get up and down.
2. There are two suspended infusion bottle holders on the top of the medical cabin, which can bear 2.5kg of weight, which is beautiful in shape and reliable in quality.
Medical oxygen control system:
The ambulance cabin is equipped with an oxygen cylinder cabinet equipped with a 10L steel oxygen cylinder with a nominal pressure of 15MPA (light weight, easy loading and unloading replacement), and a single-gauge pressure reducing valve, an oxygen terminal, a ventilator connection and an integrated oxygen inhaler. When the patient takes oxygen, the amount of oxygen can be controlled, and the humidification bottle is equipped to provide the patient with moist oxygen, which is more conducive to the patient's oxygen inhalation.
