First Aid Ambulance
>
|
| Place of Origin | China |
| Brand Name | 3611 |
| Model Number | WHG5032XJH |
Transit Guardian Ambulance (Gasoline)
Ⅰ. The Product Specifications
| Product Name | Transit Guardian Ambulance(Gasoline) | |
| Model | WHG5032XJH | |
| Chassis parameters | Engine Model | ECOBOOST4G20B6L |
| Engine Power(kw) | 149 | |
| Wheelbase(mm) | 3300 | |
| Overall Dimension(mm) | 5341×2032×2460 | |
| Carriage Dimension(mm) | 2600×1700×1720 | |
| Fuel Type | Gasoline | |
| Fuel Consumption | 2.0L | |
| Emission Standard | EuroVI | |
| Gross Weight(kg) | 3510 | |
| Max Speed(km/h) | 156 | |
| Performance | Automatic Loading Stretcher | |
| Sliding Rail Infusion Gripper | ||
| Oxygen | ||
| Oxygen inhaler | ||
| Ventilator Interface | ||
| Regulators | ||
II. Basic Description
The Transit Guardian Ambulance is modified from Ford's new Transit Axial model introduced by Jiangling Ford. Ford 2.0T Eco Boost GTDI gasoline engine, equipped with a full range of active + passive safety protection system, speed up to 156km/h; Using Bosch version 9.1 ABS+EBD technology, it is possible to actively detect and analyze road conditions and reasonably adjust the driving direction; The use of domestic leading boron steel plate, high steel chassis integrated casting, multiple beams to increase strength; The overall body center of gravity is low and more stable, effectively ensuring the safety of the driver; The medical cabin has a large space and reasonable design; The whole vehicle adopts the leading medical vehicle modification technology in China, which is suitable for all kinds of hospitals and emergency centers, especially suitable for patient transfer and urban emergency treatment.

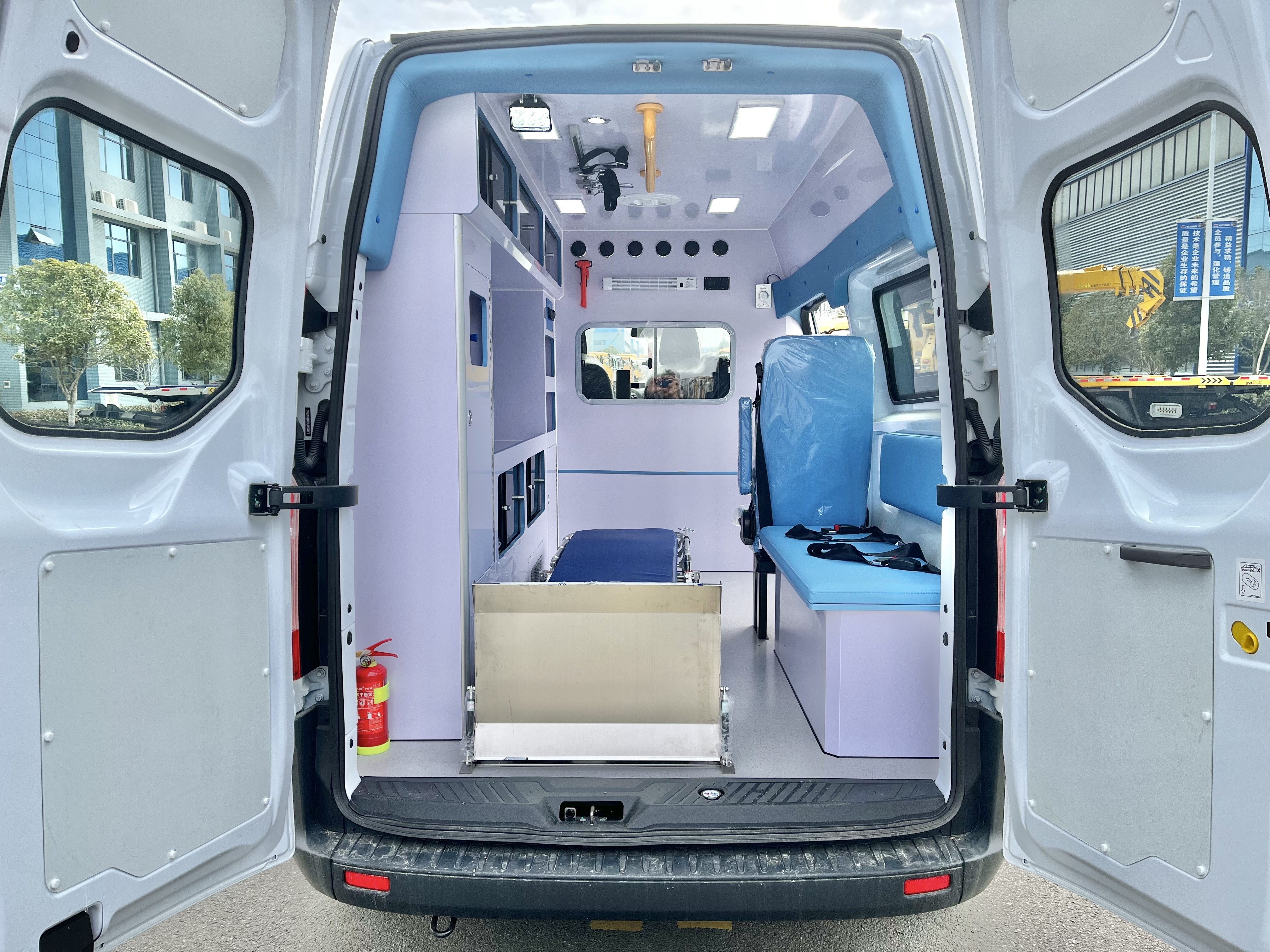

III.Medical cabin ambulance facilities
Ambulance system:

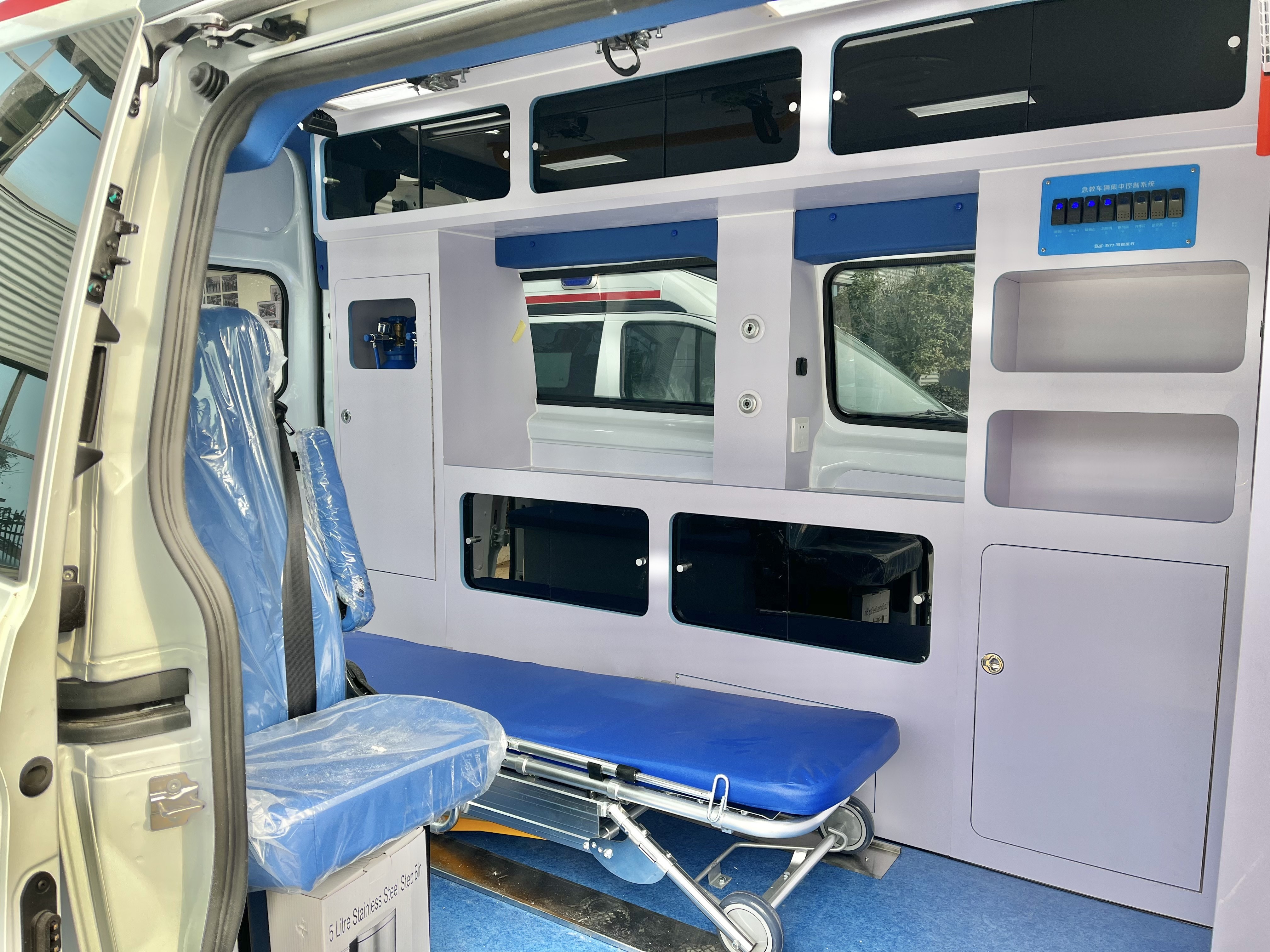

Automatic loading stretcher: the stretcher is made of high-strength aluminum alloy, PVC waterproof foam mattress, the backrest is adjustable; The bold oval leg tube, evenly distributed auxiliary upper wheels and aluminium blocks greatly increase the load bearing capacity of the derrick, making it easy to complete the loading process with only one person.
Stretcher platform: made of high-quality aluminum alloy material, auxiliary stretcher to get on and off.
Infusion Rack: 1 set of aluminum alloy rail infusion rack is installed on the top of the medical cabin, including 2 folding hooks.
Medical oxygen control system:
Two 10L steel oxygen cylinders with a nominal pressure of 15MPA (light weight for easy loading and unloading replacement), two single-gauge pressure reducing valves, two German oxygen terminals, a ventilator connection and a wall oxygen inhaler. When the patient takes oxygen, the amount of oxygen can be controlled, and the humidification bottle is equipped to provide moist oxygen for the patient, which is more conducive to the patient's oxygen inhalation.
